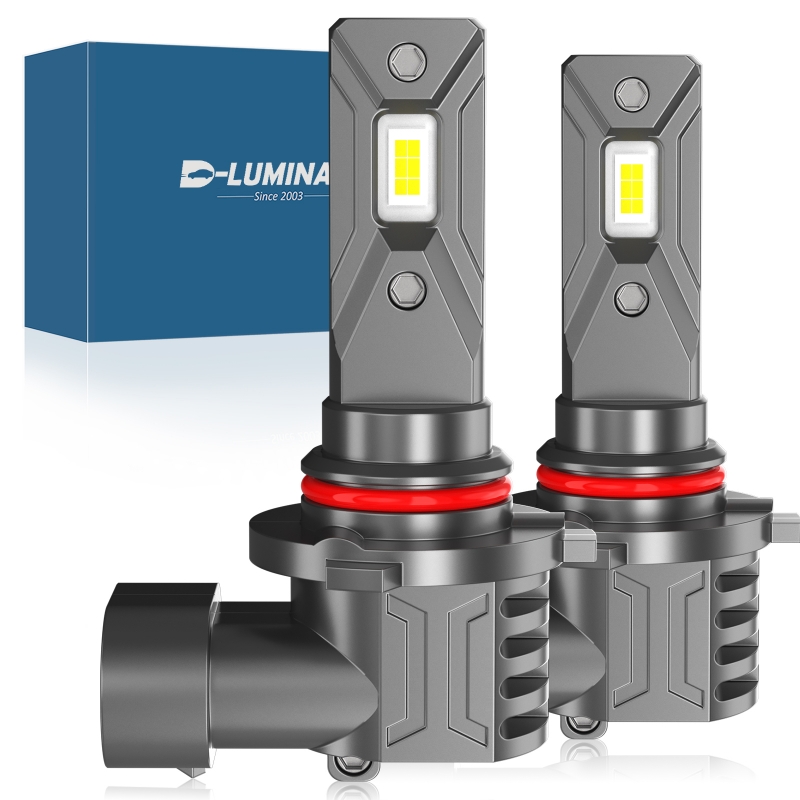

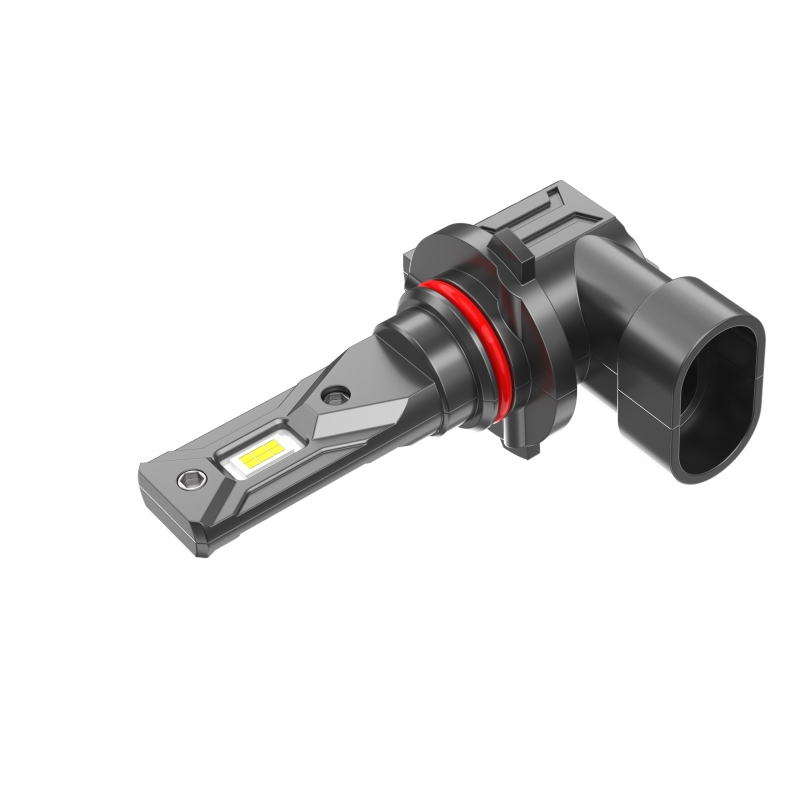

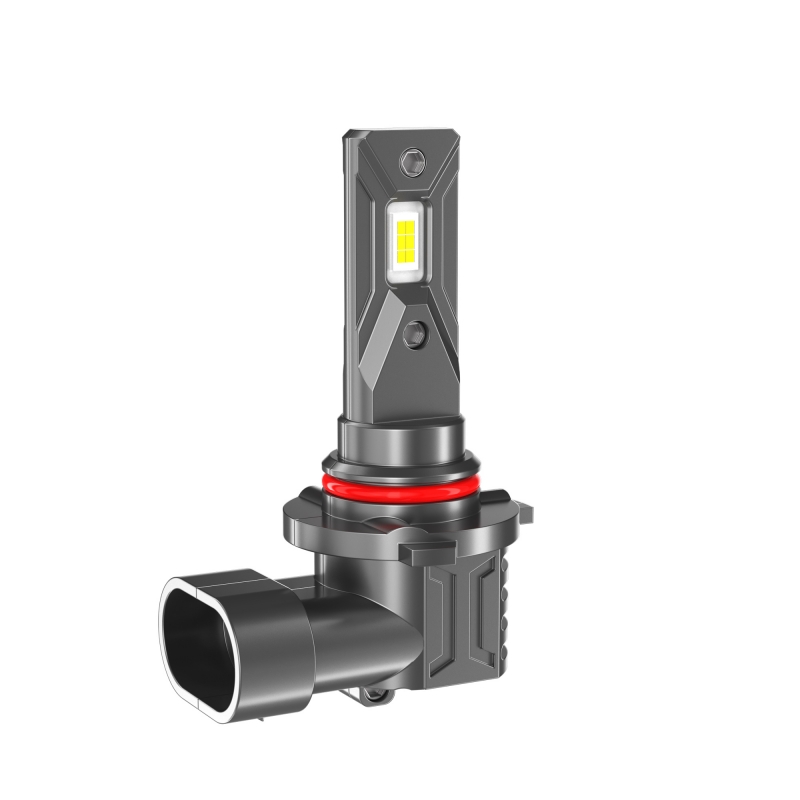

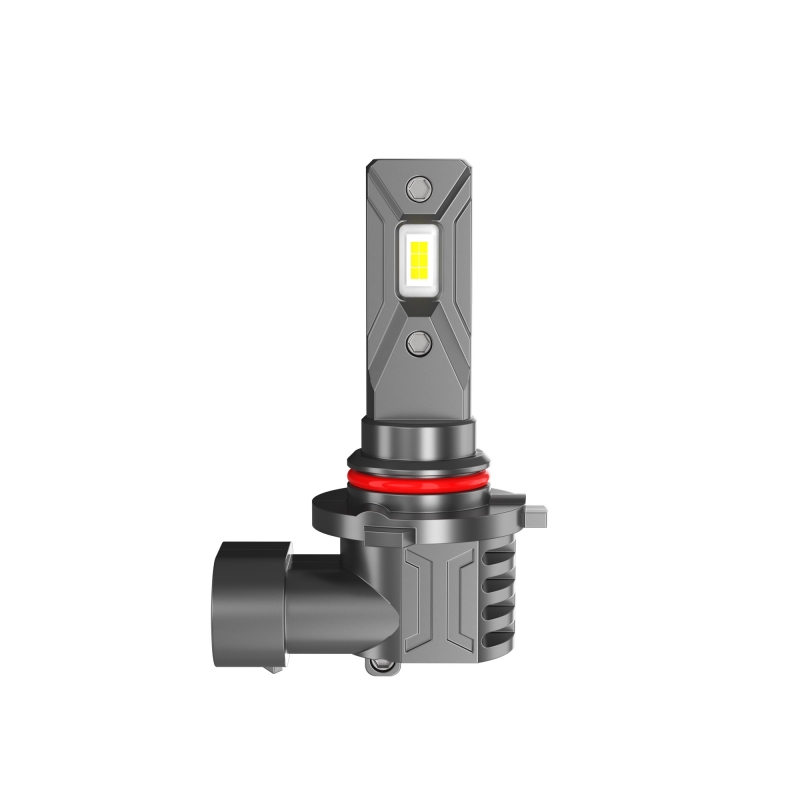

PL-S40-20W Fanless 9005/H10 LED Headlight

Product Specification:
Item Code:                         PL2505D03
Base Number:                    9005/H10
Start Power:                       20W
Stable Power:                     12W
Current Draw @13.2V:       1A
Operating Voltage:             DC9-36V
Light Sources:                    CSP3570
Color Temperature:            6000-6500K
Brightness:                         5000Lumen/set
Driving Style:                      Constant Current
No Polarity:                        Yes

Main Features:
Fan-Free Passive Heat Dissipation Structure
No built-in cooling fan; eliminates fan failure risks, greatly enhancing long-term reliability and anti-dust performance.
360°Light Distribution
Achieves full-angle uniform illumination without dark spots, delivering beam patterns consistent with original halogen lamps.
Optimized Thermal Structure
The copper heat pipes expand contact area to quickly conduct heat away from LED chips and avoid overheating.
Copper-plated inner heat sink boosts thermal absorption and heat dissipation efficiency.
High-Grade LED Emitters
Adopts premium LED chips with stable lumen output, high luminous efficiency and long service life.
True Plug-and-Play Configuration
Direct OEM replacement, no extra wiring ｏｒ coding required for most vehicle models.
Highly Integrated Miniaturized Housing
Compact integrated structure, perfectly fits original lamp cavity without modification.
6000-6500K Pure Cool White Light
6000-6500K  calibrated color temperature produces crisp daylight illumination for improved night visibility.

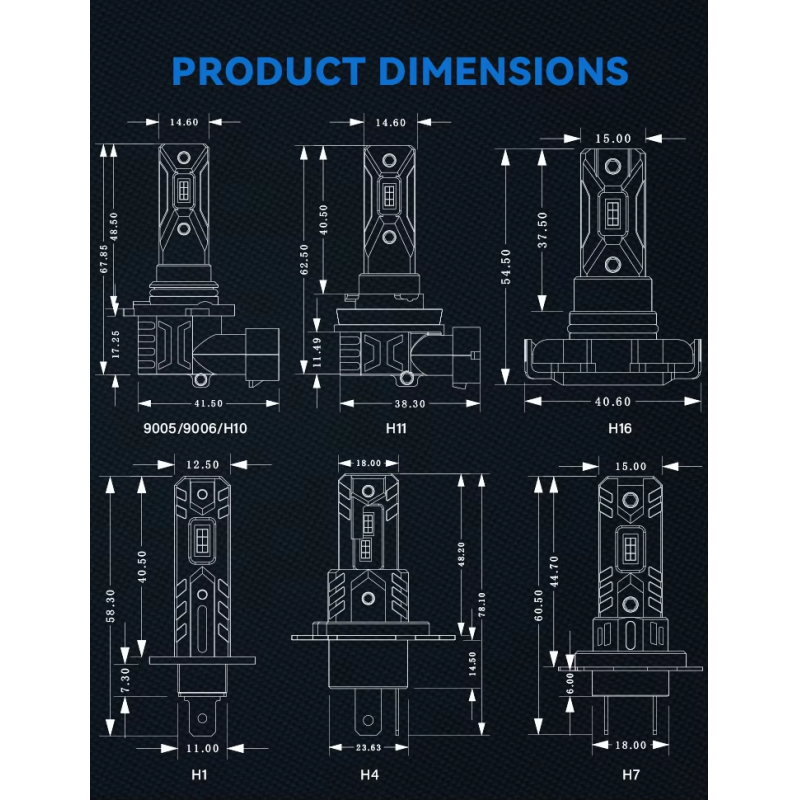

1:1 OEM Halogen Form Factor
Identical dimensional profile as factory halogen bulbs, seamless direct swap.
Energy-Saving High-Efficiency Circuit
Raises light output while cutting power draw, low heat generation and energy consumption.
5-Year Long-Term Quality Warranty
We provide up to 5 years of after-sales guarantee against manufacturing defects.
