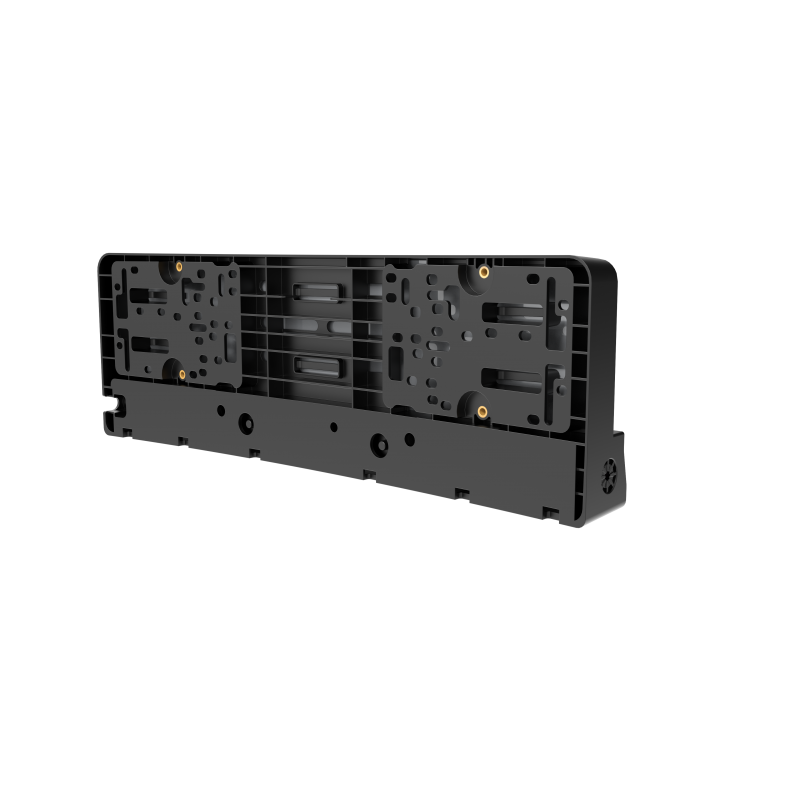

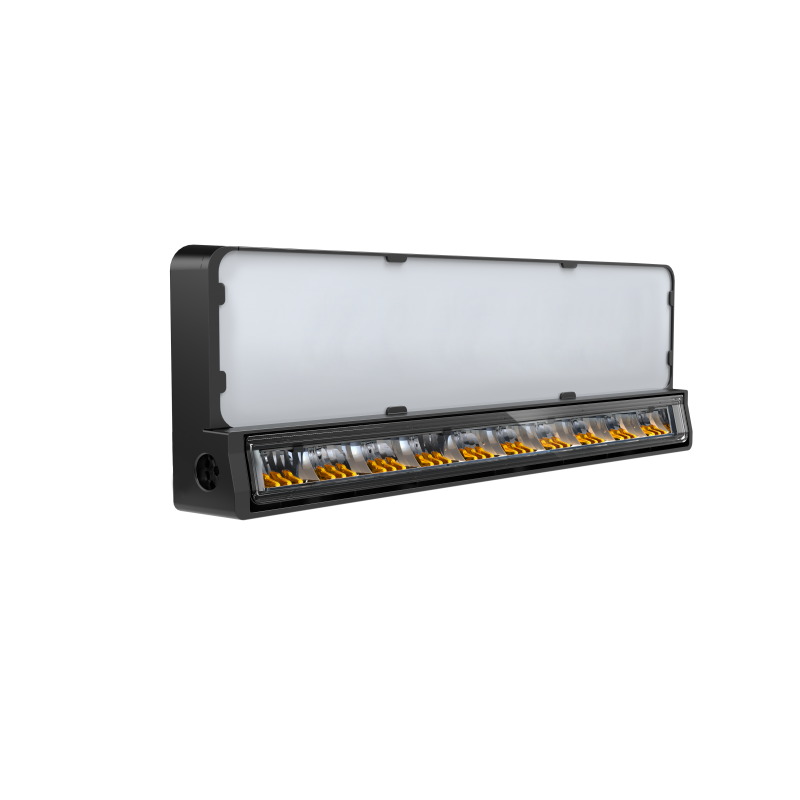

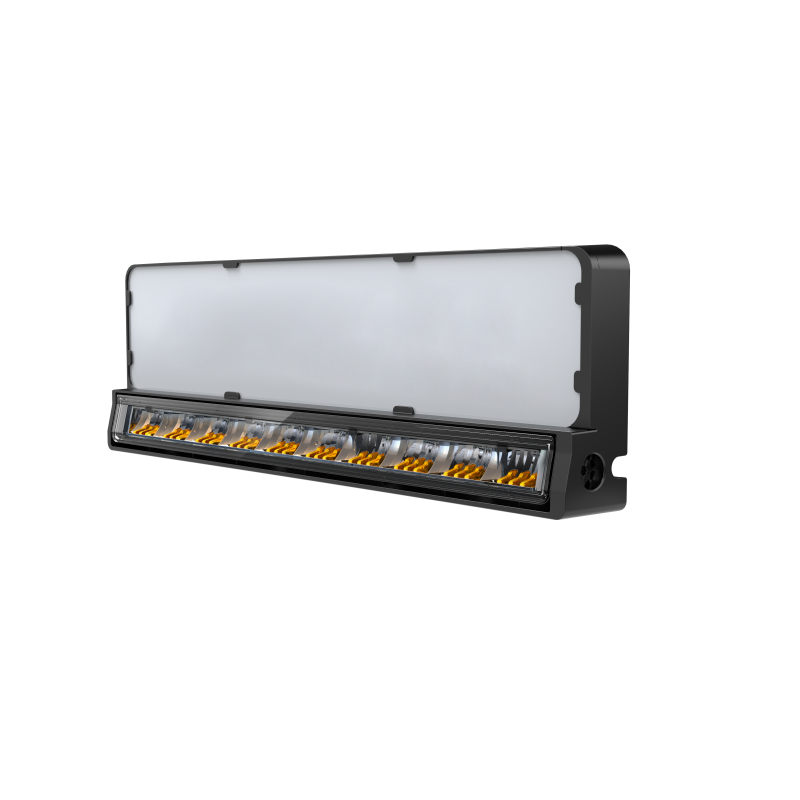

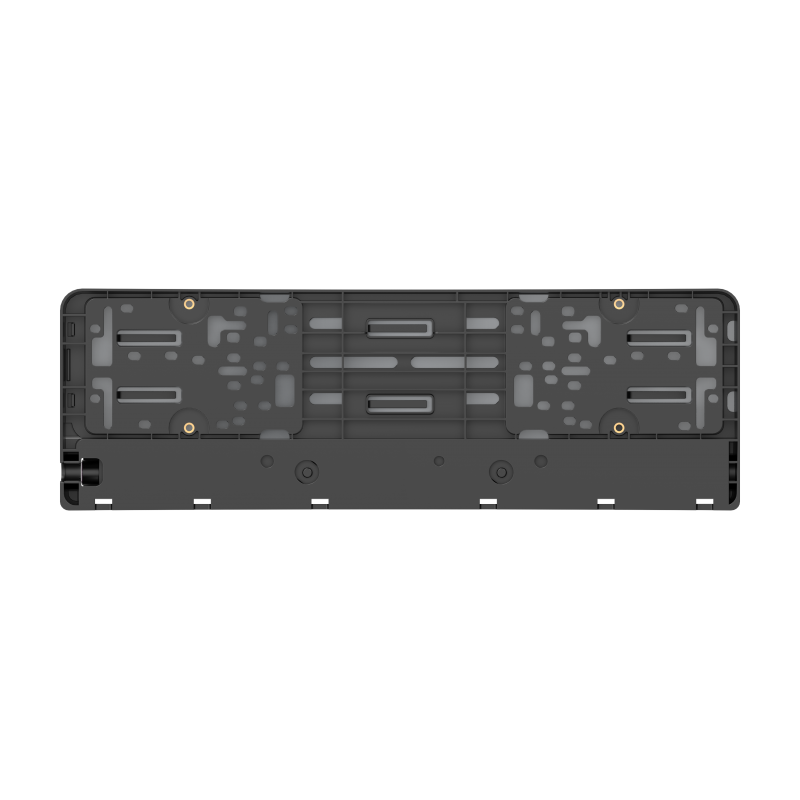

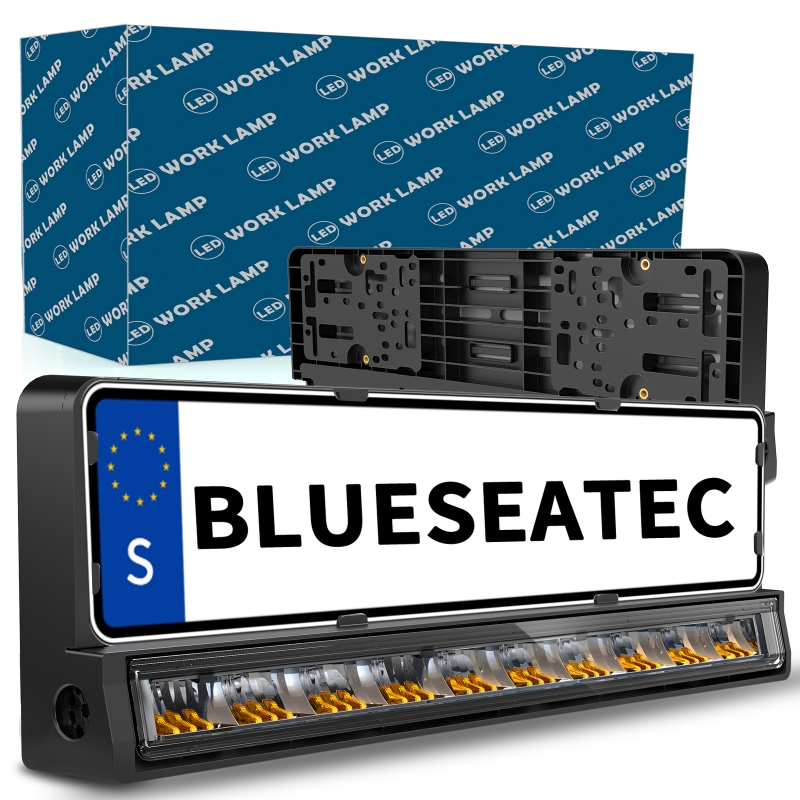

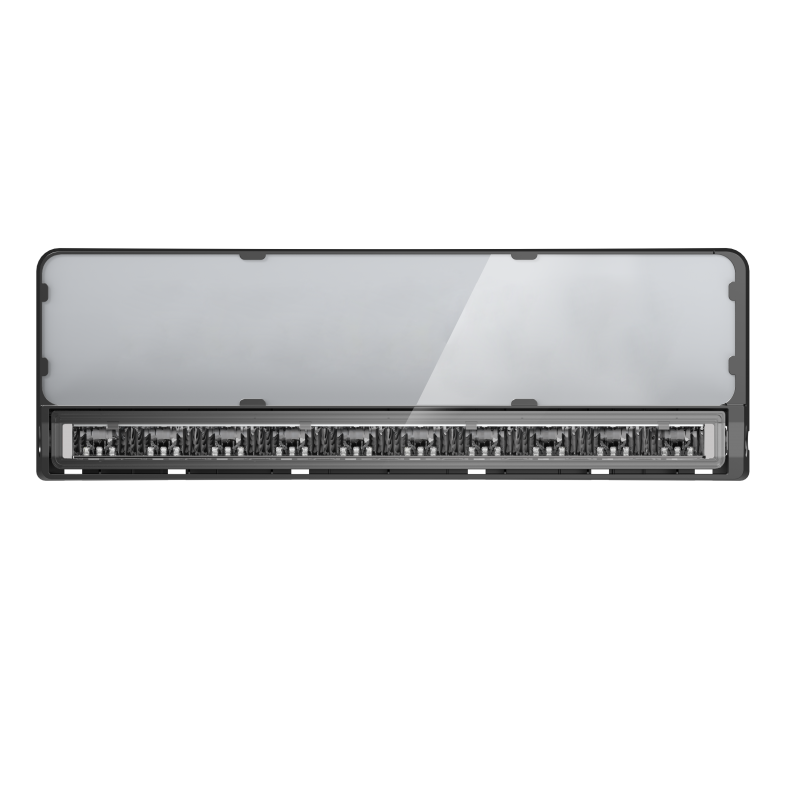

PL-B10 EVO Number Plate Holder With Dynamic LED Driving Light bar

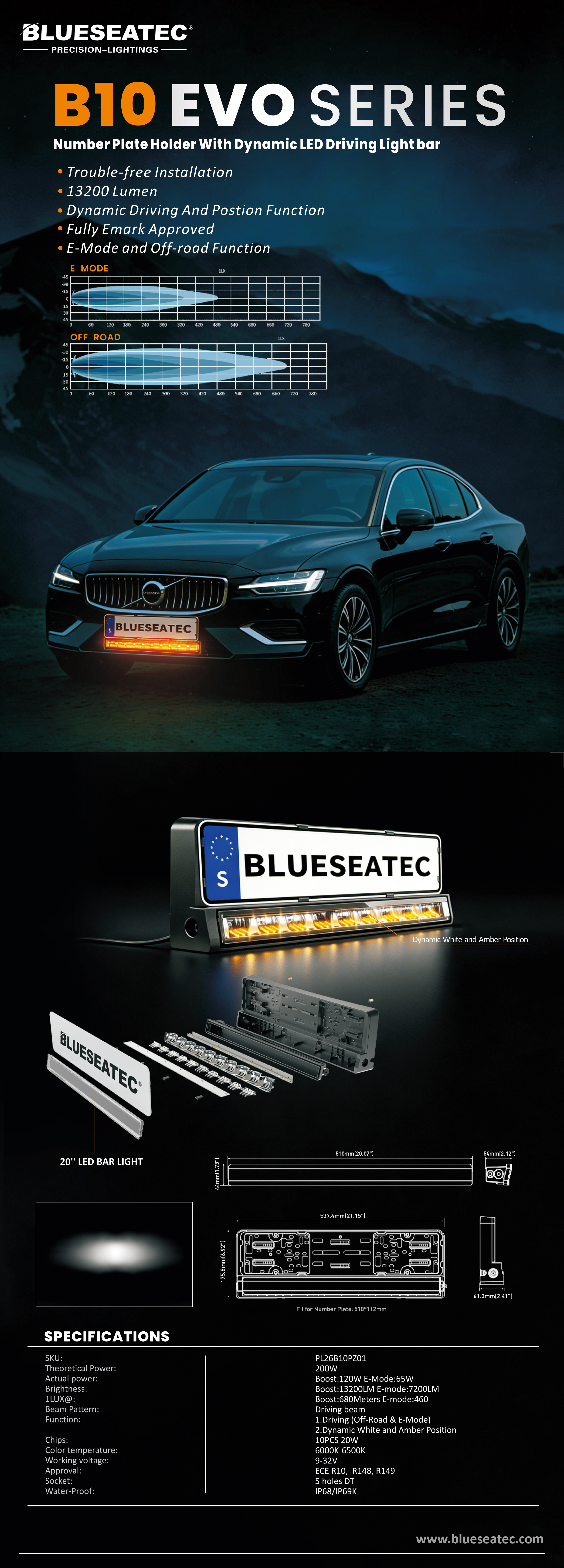

Features For B10 EVO Series LED Driving Lights

1. Patented products and full new conception and innovative design on market.
2. High power output with a super brightness and perfect beam pattern.
3. Multiple functions with dynamic position lights and strobe lights.
4. Special design with E-mode and Boost Mode on driving lights.
5. Fully Emarked approved with R10 R65 R148 R149.
6. IP68 Water-proof up to 3 meters (10 feet)
7. 5 Years warranty

Product Details

Product Specification
Theoretical Power:                     200W
Actual power:                             Boost:120W E-Mode:65W
Brightness:                                 Boost:13200LM E-mode:7200LM
1LUX@:                                      Boost:680Meters E-mode:460
Beam Pattern: Driving beam
Function:                                    1.Driving  (Off-Road & E-Mode)
                                                   2.Dynamic White and Amber Position
Chips:                                         10PCS 20W
Color temperature：                  6000K-6500K
Working voltage:                        9-32V
Approval:                                    ECE R10, R148, R149

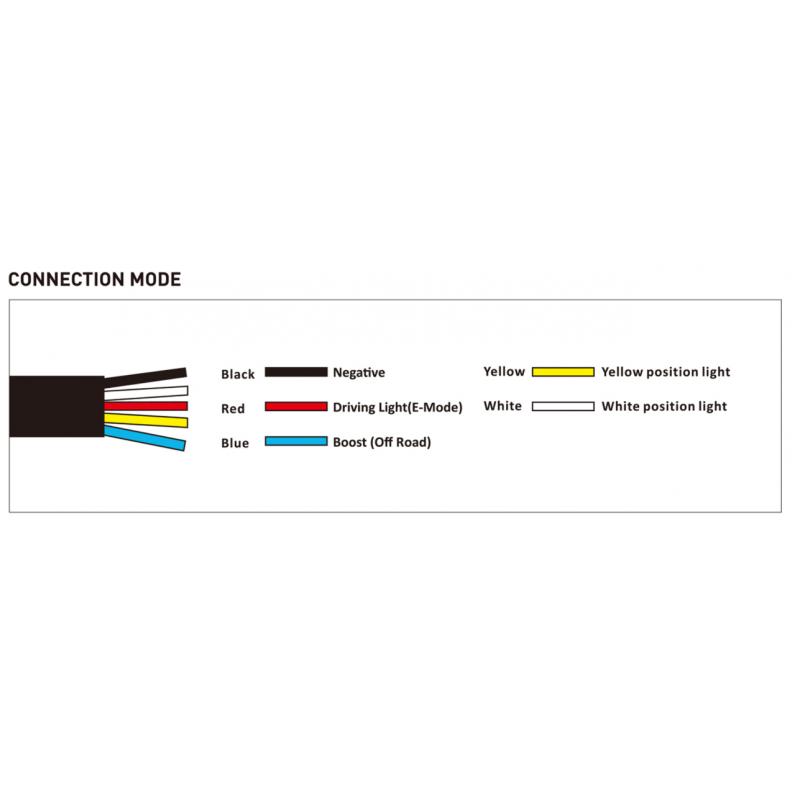

Socket:                                        5 holes DT
Water-Proof：                            IP68/IP69K

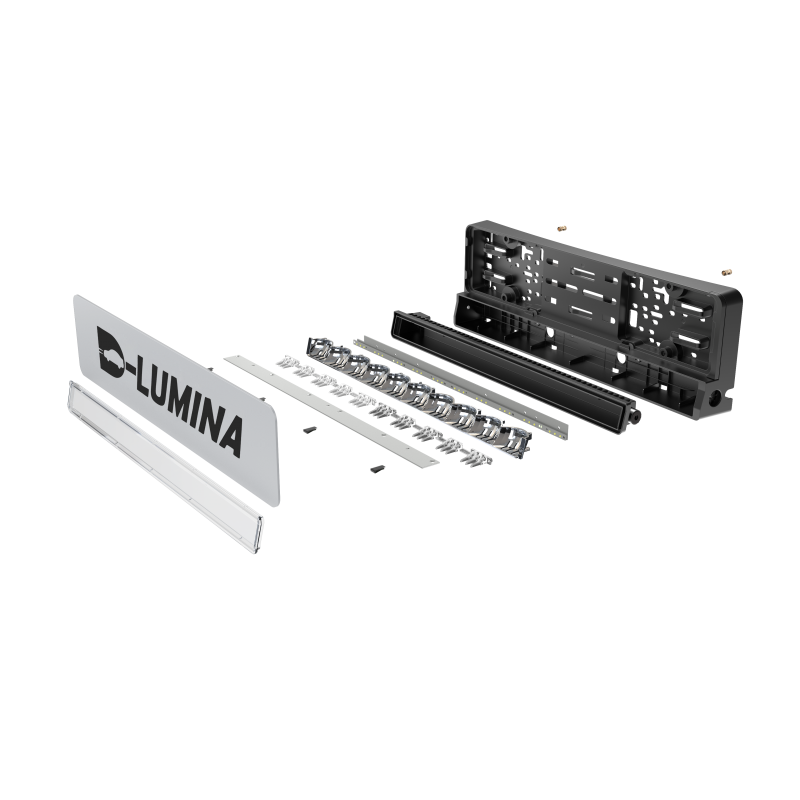

Main Materials:
·Die cast aluminum alloy (ADC12) heat-sink
·PC lens
·PVC cable
·Anodized polyester powder-coating
·DT Connector

Protected Against:
·Reverse polarity Protected
·Shock proof,waterproof and UV shielded
·RFI/EMC interference
·Voltage and current surge Protected
·Overheated Protected,Thermal management regulation
